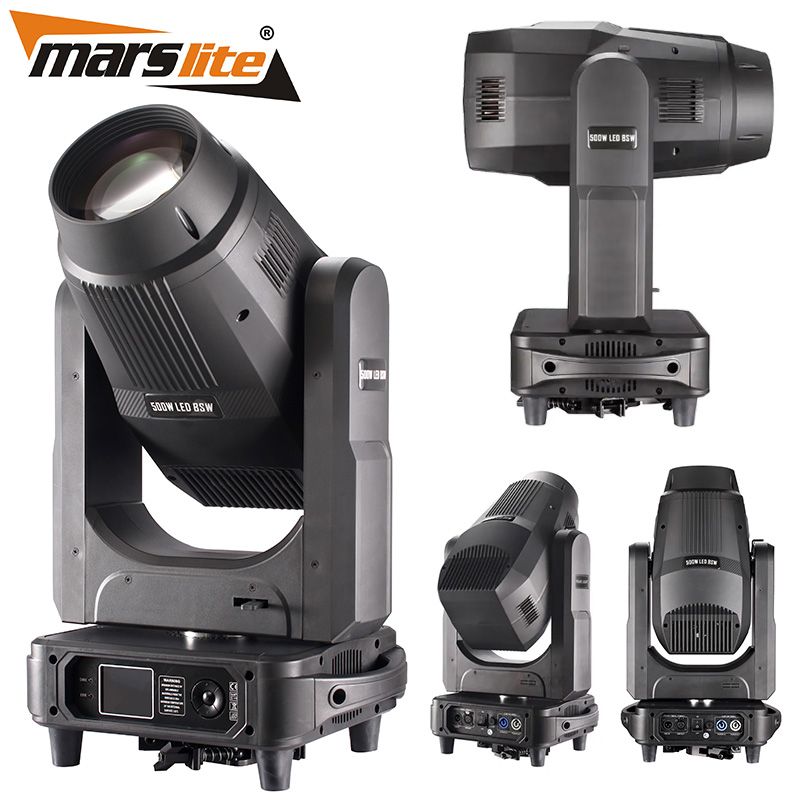

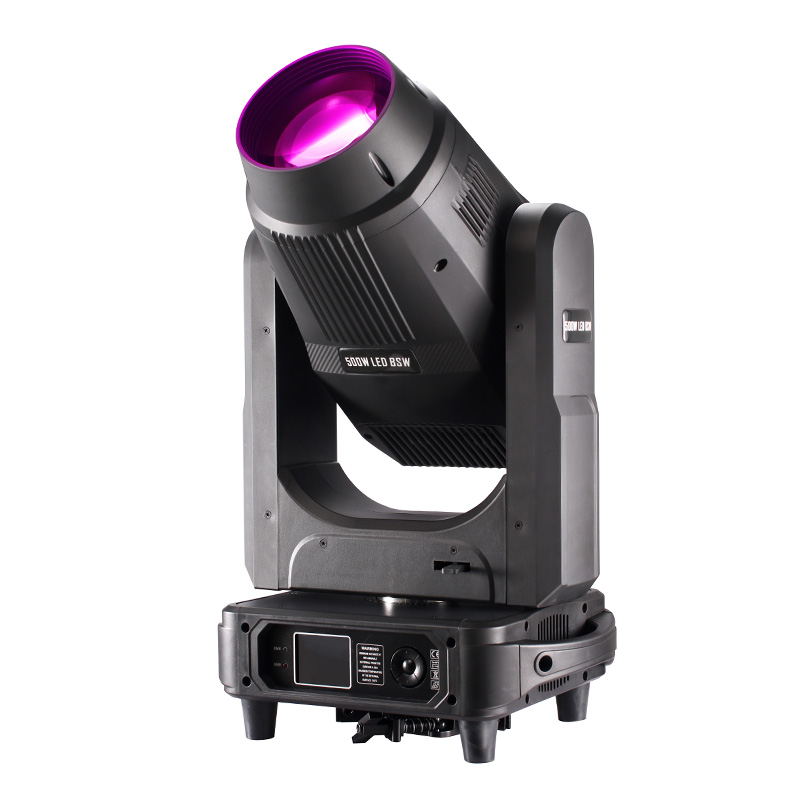

500w LED Beam Spot Wash CTO+CMY Beam Moving Head Light for Churches, Theaters, Large stages, Concerts.

Model:MS-BSW500CMY

Input voltage: AC110V-240V/50-60HZ

Light source specification: led 500W

Channel mode: 23 channels

Dimming system: 0-100% linear adjustment

Focusing system: linear adjustment from 4 meters to 50 meters

Zoom angle: 3.5-50 degrees

Color: 8 colors + white light. Color half-color function

Color mixing system: linear CMY+CTO color mixing system.

Fixed gobo wheel: 11 fixed patterns + white light

Rotating gobo wheel: 7 glass patterns, each glass pattern can be independently forward and reverse

Prism: standard 6 facet prism and 8 facet prism, each prism can be independently forward and reverse

Control signal: International standard DMX512. With RDM function, online software upgrade is available, dial address code

Safety device: with electronic temperature control overheating protection, electronic temperature control automatic power-off protection when the overheating system fails

Product appearance: flame retardant, high temperature resistance

Product net weight: 22.5KG

Product size: 380*269*654mm (L*W*H)

＄689-＄789

Get Price Send Email

We are a stage lighting factory. Different purchase quantities have different purchase prices. Please feel free to inquire.

Product Description

Product Advantages

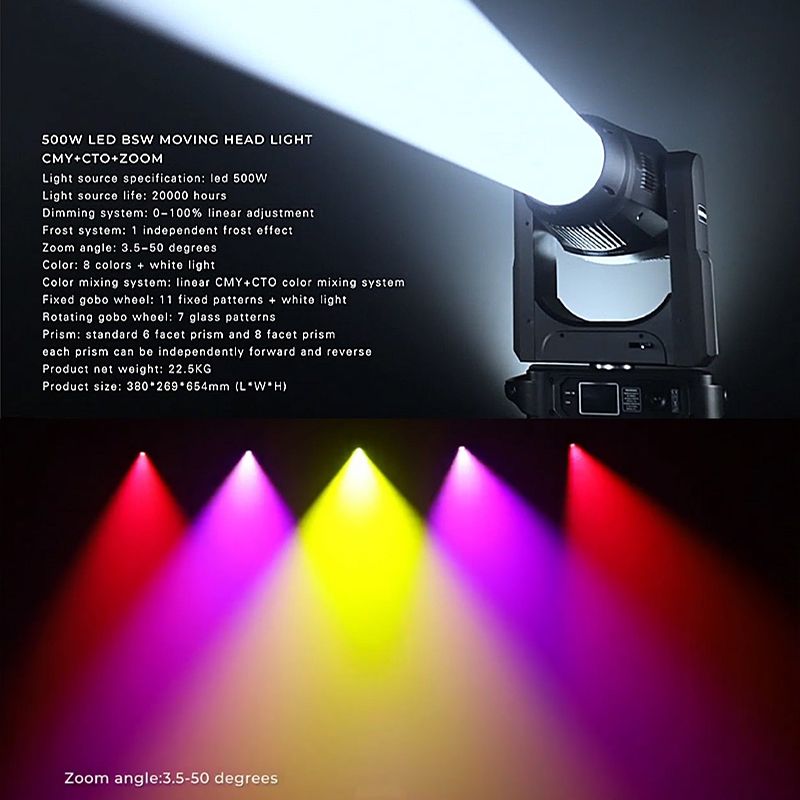

The MS-BSW500CMY is a professional beam moving head light featuring a CMY+CTO color mixing system. It utilizes a 500W LED lamp, making it energy-efficient and environmentally friendly with a long lifespan, positioning it as a popular choice in the current moving head light series. Its powerful lighting effects are a key reason why many professionals opt for this model. It offers linear adjustment from 4 meters to 50 meters, along with a zoom angle ranging from 3.5 to 50 degrees. The fixture includes 8 colors plus white light, a color half-color function, and an 11 fixed patterns plus white light setup. There are also 7 glass patterns, each of which can be operated independently in both forward and reverse directions. It features a standard 6-facet prism and 8-facet prism, with each prism capable of independent forward and reverse operation. Additionally, it adheres to international DMX512 standards, includes RDM functionality, and allows for online software upgrades and address code dialing. The MS-BSW500CMY also serves as a versatile moving head stage light, offering beam, spot, and wash effects, catering to the needs of professional stage DJs looking for high-power 3-in-1 moving head lights. As a product positioned as a professional stage moving head light, it is particularly suited for use in churches, theaters, large stages, and concerts.

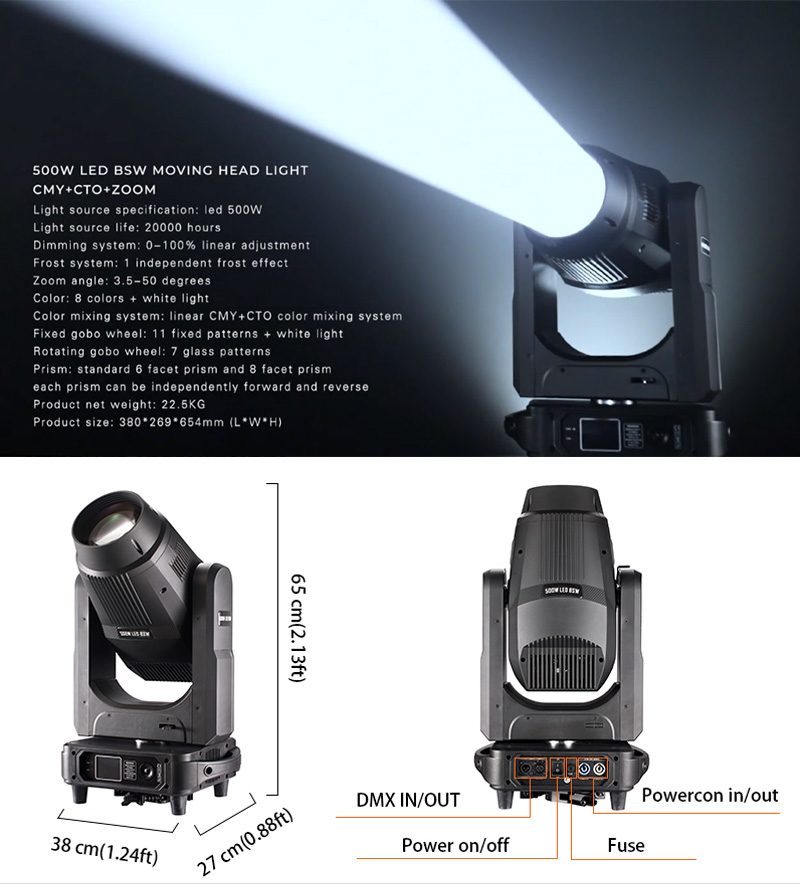

MS-BSW500CMY

Technical Parameter

Input Voltage	AC110V-240V/50-60HZ
Light Source Specification	LED 500W

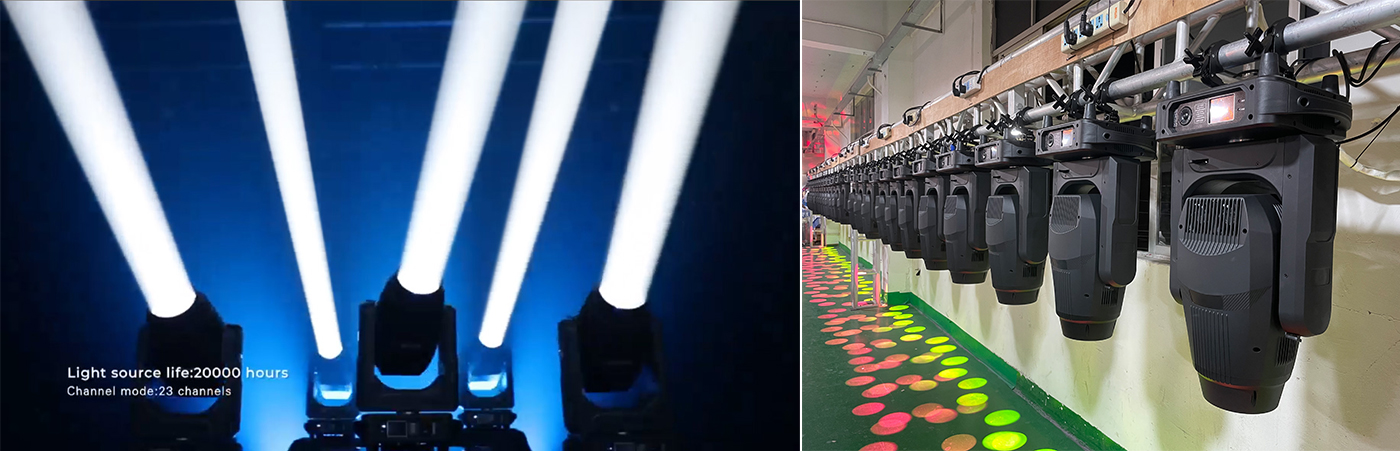

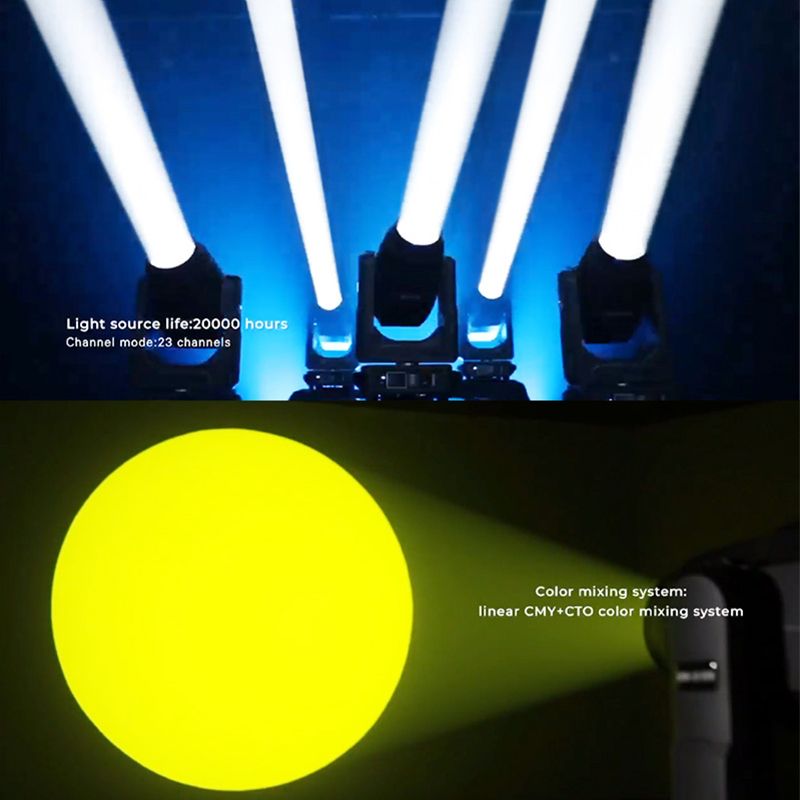

Light Source Life	20000 hours
Rated Power	600W
Channel Mode	23 channels
Pan	540°(16 bit precision scanning)
Tilt	270°(16 bit precision scanning)
Dimming System	0-100% linear adjustment
Focusing System	Linear adjustment from 4 meters to 50 meters
Frost System	1 independent frost effect, soft and natural light spot
Zoom Angle	3.5-50 degrees
High-Speed Strobe	0-30 times/sec. Adjustable speed strobe effect. Strobe macro function
Color	8 colors + white light. Color half-color function

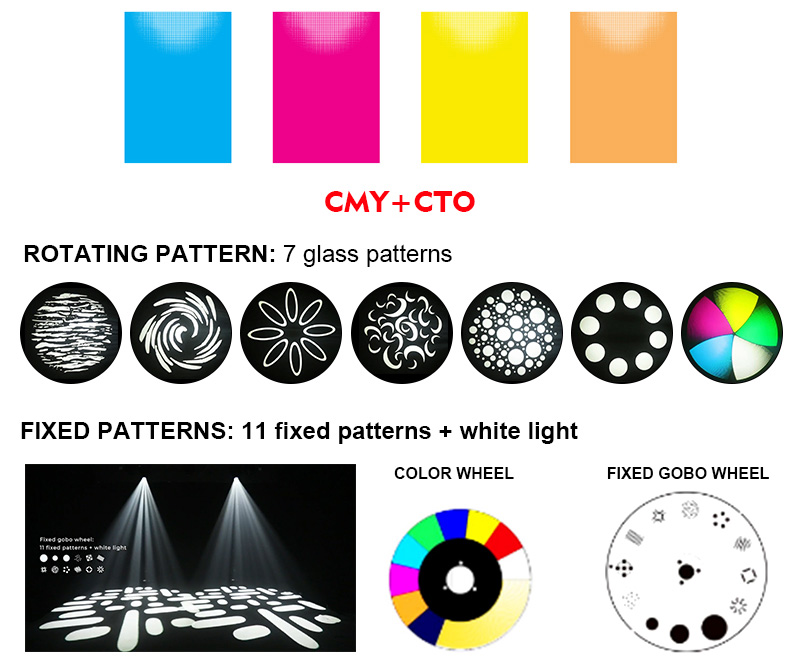

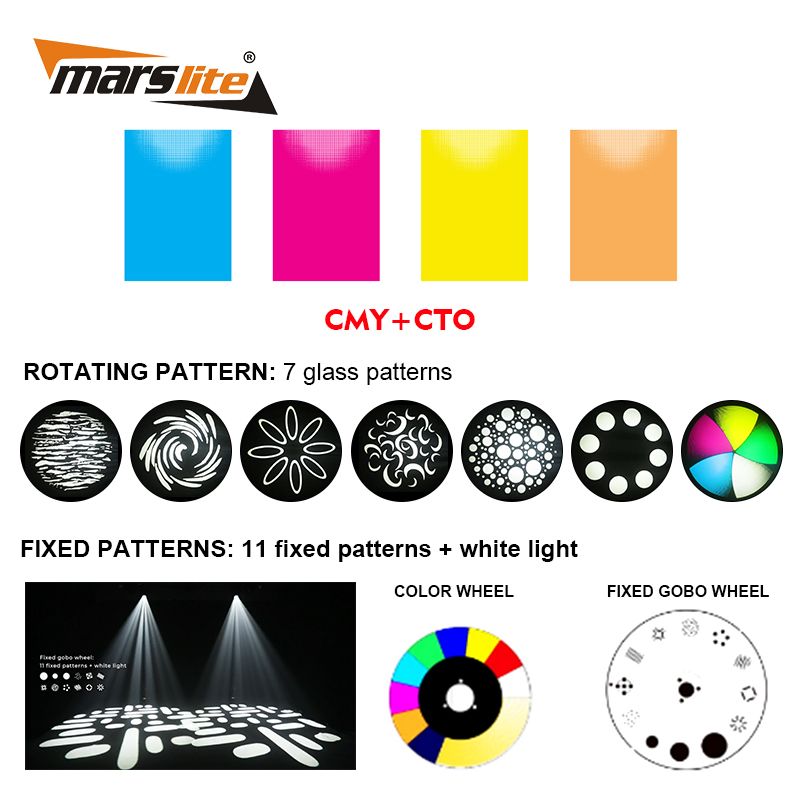

Color Mixing System	Linear CMY+CTO color mixing system.
Fixed Gobo Wheel	11 fixed patterns + white light
Rotating Gobo Wheel	7 glass patterns, each glass pattern can be independently forward and reverse
Prism	Standard 6 facet prism and 8 facet prism, each prism can be independently forward and reverse
Macro Function	Console reset function, self-propelled mode, master-slave mode
Display Mode	LCD display, key + touch dual operation mode
Control Signal	International standard DMX512. With RDM function, online software upgrade is available, dial address code
Safety Device	With electronic temperature control overheating protection, electronic temperature control automatic power-off protection when the overheating system fails
Product Appearance	Flame retardant, high temperature resistance
Working Environment	-20 degrees - 40 degrees
Protection Level	IP20
Product Net Weight	22.5KG
Product Size	380269654mm (LWH)
